UBQ-3 NHS Ester

Catalog#

Unit Size

Price (USD)

Availability

Qty

Cat.#: 1751-5

Unit size: 5 mg

$105.00

in stock

Cat.#: 1751-25

Unit size: 25 mg

$325.00

in stock

Cat.#: 1751-100

Unit size: 100 mg

$895.00

in stock

Universal Black 3 Quencher (UBQ-3, Black Hole Quencher®-3 (BHQ®-3) equivalent) is a dark, far-red nonfluorescent acceptor dye with no native emission. UBQ-3 is often used as an acceptor for preparation of fluorogenic dual-labeled probes, qPCR probes, and for other fluorescence-quenched probe applications. A broad and intense quenching range from 620-730 nm makes it useful as an acceptor in fluorescence resonance energy transfer (FRET) applications in conjunction with far-red to near-IR emitting dyes such as Cy5, Cy5.5, Alexa Fluor® 633, 647, 700, IRDye® 650, 680 and 700.
UBQ-3 is structurally identical to BHQ®-3.

The NHS ester (or succinimidyl ester) is the most popular amine reactive group for labeling with the primary amines of proteins (Lys), amine-modified oligonucleotides, and other amine-containing molecules. The labeling occurs most efficiently at pH 7-9 and forms a stable, covalent amide bond.

Specifications
Structure

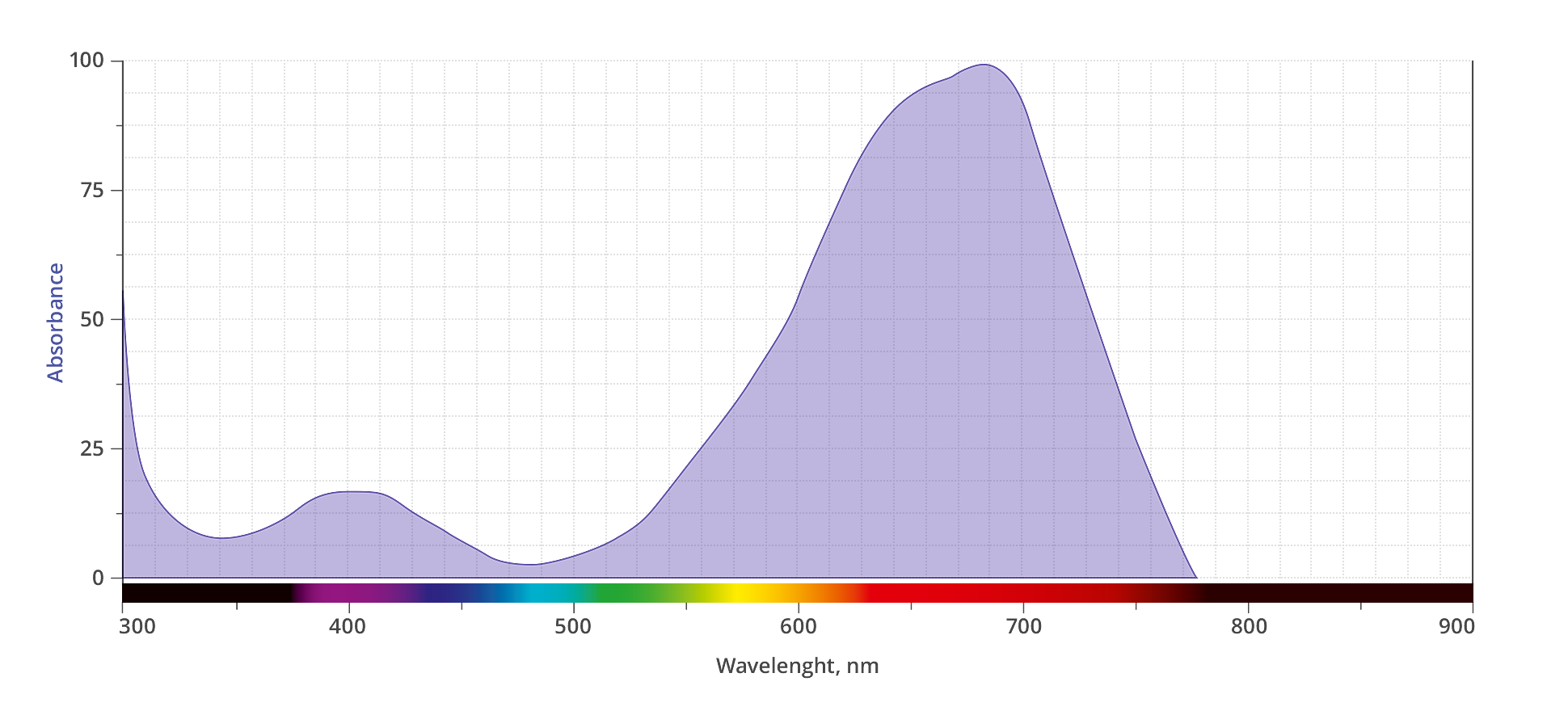

Abs/Em Spectra
Protein Labeling Calculator
Documents

Reactivity

Primary amine

Abs maximum

615 nm

Extinction coefficient

40,700 cm-1M-1

Solubility

DMSO, DMF

Spectrally compatible dyes

Cy5, Cy5.5, Alexa Fluor® 647, 680, 700, IRDye® 650, 680, 700

Molecular weight

664.76

Storage conditions

-20C

Shipping conditions

Ambient temperature

Protein name

Protein molecular weight (Da)

Protein concentration (mg/mL)

Volume of protein to be labeled (µL)

Enter only one — either volume or amount of protein to be labeled

Amount of protein to be labeled (mg)

Molecular weight of labeling reagent (Da)

Amount of labeling reagent used (mg)

Maximum concentration of DMSO (%) *
* Leave blank or 0 if not used

Enter only one — either maximum concentration of DMSO or volume DMSO added to label

Volume of anhydrous DMSO added (µL)

Molar equivalents of labeling reagent used

Volume of DMSO required to make a stock solution (µL)

Volume of protein to be labeled (µL)

Amount of stock labeling reagent to be added (µL)

Amount of DMSO in labeling reaction (%)
